DPL
DPL (Delicate Pulsed Light) is the latest technology of combining
IPL and laser power for permanent hair removal that converts light
energy into heat energy,triggering the root of the hair, offering a
stronger yet gentler solution.
DPL is a new technology of permanent hair removal, with target pure
wavelength,which works in a high repetition rate of short pulses
,by gradually heating the dermis to a temperature that effectively
damages the hair follicles and prevents re-growth painlessly, while
avoiding injury to the surrounding tissue.

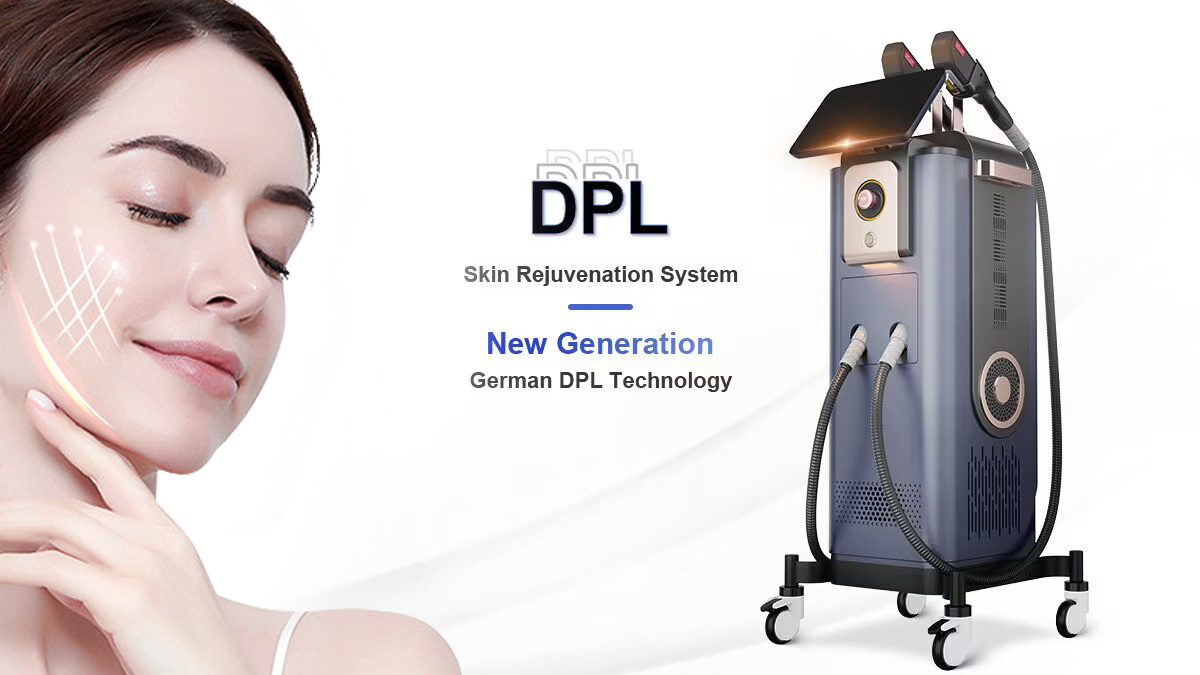

HAIR REMOVAL SKIN REJUVENATION SYSTEM
New Generation German DPL Technology
Narrow 100nm Delicate Pulse Light Technology
Multiple wavelengths available for use on all skins
Auto-identified 5 handles for your choice
Treatment Theory
The machine uses DPL(Dye Pulsed Light) precision skin rejuvenation
technology that is narrow photo skin rejuvenation (DPL), it refers
to a new optical skin rejuvenation technology, different from
traditional technology (such as IPL), The new technology can
stimulate 100nm narrow light which also contains the absorption
peaks of melanin and oxygen and hemoglobin, allowing accurate
concentration of effective therapeutic energy, thus quickly and
efficiently solve the facial freckles and telangiectasia (red face)
problems.
1. Narrow-spectrum 100nm delicate pulse light technology.
Quickly and efficiently solve the facial freckles and
telangiectasia (red face) problems.
2. Core of Light Imported from Germany.
Xenon lamp is the core of energy. The light adopts German original
im-ported xenon lamp which has obtained many patented technologies
around the world, and the minimum effective light emission is
1,000,000 times.
3. OPT power supply.
the energy is uniform and stable, which not only improves the
comfort treatment feeling, but also maintains the high energy.
4.Multiple wavelengths available for use on all skins.
Five handles for your choice, HR, SR, PR, VR, AR.
5. In-motion technology.
Fast mode with 10hz high frequency, which speeds up the operation
and reduces treatment time.

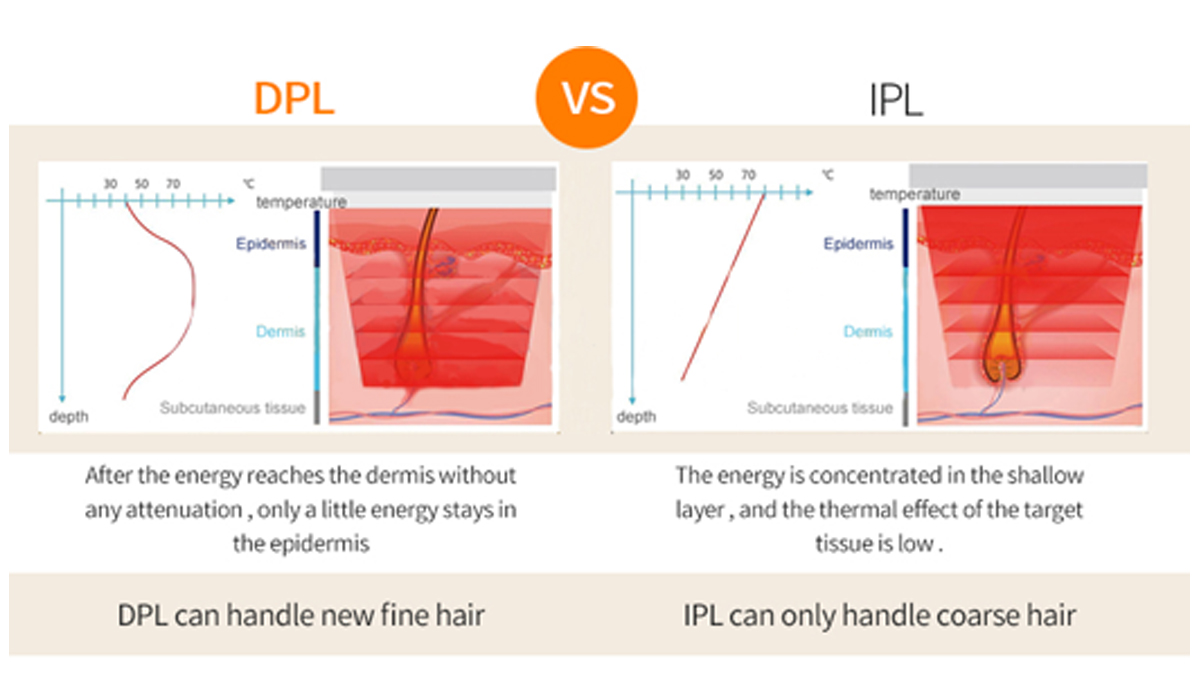

DPL VS IPL
DPL VS IPL |
Type | DPL | IPL |
Pulse Duration | Narrow Spectrum 100nm(550-650nm) | wide spectrum(560-950nm) |
Melanin absorption | more than 2-5 times of IPL | Low |
Vascular absorption | 3 times higher than IPL | Low |
Treatment times | 2-3 times | 4-6 times |
Effect | The clearance rate is more than 90%, which will further dilute the cases that have been treated with
IPL and have no subsequent changes. | The clearance rate is about 70%, leaving a light mark |
Comfort | Low total energy, | High total energy, |
Comfort is significantly higher than IPL | Pain, low comfort |
Multifunctional Therapeutic Platform
Effective and safe treatment for Pigment Removal, Skin Tightening,
Blood Vessels Removal, Hair Removal, Acne Treatment, Skin
Rejuvenation
Complex System of DPL
hair removal mode
Normal mode hair removal: no fast flash, only one click to emit
light, suitable for small parts of hair like; lip hair, underarms,
hairline, bikini, etc.
Fast hair removal mode: it is a fast hair removal mode, which can
emit light continuously, and is suitable for large areas of hair,
such as hand hair and leg hair, and can adjust the frequency of the
light
Effect
hair removal tips
1. The hair is long and black; you can ask the customer to shave it
three days in advance, or you can cut it as short as one millimeter
at that time, and absorb light through the black stubble, and
conduct heat to the root of the hair. The white and tender fluff
can be done directly without shaving, and some hairs will fall off
automatically after a week.
2. When operating, try to increase the energy as much as possible
until the customer has a strong needling sensation and it is
acceptable.
3. Walk six times as a whole, 4-6 times for coarse hair, and 6-7
times for fine hair
4. Insist on completing the course of treatment according to the
interval cycle! Because the hair follicle recovery period is 21
days, and the hair growth cycle is about 28 days, all intervals are
21 to 28 days, and try not to exceed 30 days.
Pulse recommended settings
Skin rejuvenation: pulse width 3-5 pulse interval 10-25ms
Energy: starting at 3-5, I don’t feel like it’s going up
Parameter setting principles:
1. If the skin is thick, dark yellow and rough, you can increase
the pulse width and increase the energy density at the same time
2. If the skin is dark, the epidermis is thicker, and the
pigmentation is pigmented, the pulse interval can be increased
3. If the skin is darker, the epidermis is thinner, and the skin is
sensitive, the energy density can be set smaller
4. If treating parts with less subcutaneous tissue, the energy
density can be appropriately reduced
5. As the number of operations increases, the energy density can be
appropriately increased
6. The reaction is not obvious, the customer can tolerate it, and
the energy density increases
Photon skin rejuvenation operation process:
1. Cleanse your face with makeup remover and wear an eye mask.
2. Apply the cold gel and choose the appropriate energy parameters.
3. Burning and prickling sensations are clinical standards.
4. Each spot has a 1 mm spot overlap.
5. Apply cold compress for 15-30 minutes after operation.
6. Cold compresses eliminate subsequent heat and disperse heat to
avoid burns.
Operating time and interval Each operati.
on takes about 20 minutes. In order to achieve the best operation
effect, it is recommended to operate about 5 times for each course
of treatment. The interval between each operation is about 20 days.
A course of treatment usually takes more than four months.
Wave Length | PR: 550-650nm VR:500-600nm |
Optional:( HR: 650-950nm SR: 560-950nm AR 420-520nm ) |
Fluence | 10-50J/cm2 SHR: 1-10J/cm2 |
Frequency | 1-10HZ |
RF power | 1-30W |
Input Power | 4000W |
Power Source | Pure Sapphire |
Lamp | German Imported lamp |
Spot Size | 10*40mm for(SR,VR,AR,PR) 15*50mm for HR |
Contact cooling temperature | Max -10℃ |
Cooling System | Built in water cooling +semi conductor cooling +air cooling |
LCD Screen | 10.4 inch true color touch screen control |
package size | 82*59*122cm |
Weight | 99kg |
