Description
Fractional CO2 Laser Machine
This Co2 Fractional rf laser utilized 10600nm diode laser, and 3
treatment heads, multi shapes spot size. Can do a good job for acne
removal, scar removal and other skin resurfacing treatment. Also
can do the vaginal tightening, Vaginal inflammation.
CO2 laser machine principle:
1.Fractional resurfacing is a new laser treatment modality that
creates numerous microscopic thermal injury zones of controlled
width, depth,and density that are surrounded by a reservoir of
spared epidermal and dermal tissue,allowing for rapid repair of
laser-induced thermal injury. This unique modality, if implemented
with proper laser- delivery systems, enables high-energy treatments
while minimizing risks.
2.This machine use the RF Tube manufacturerd by Coherent
America,the frequency can reach more than 5000HZ,the high speed can
work more efficiecnt and effectively,it is very good for the ultra
pulse incision for the precise surgey,no blood,the treatment area
is very clear,andless down time.
Application:
Cosmetic Application
Rhytides (Wrinkles)
2. Mottled dyspigmentation
3. Telangiectasia (Red Spots)
4. Solar lentignes (Brown spots)
5. Large pores,Rough skin texture
Medical Application
1. Actinic keratosis (sun-damaged skin, precancerous lesions)
2. Seborrheic keratosis (sun-damaged skin, precancerous lesions)
3. Sebaceous hyperplasia (yellow, shiny bumps on the face)
4. Rhinophyma (nose swelling and tissue over growth)
5. Epidermal Melasma (Brown spots)

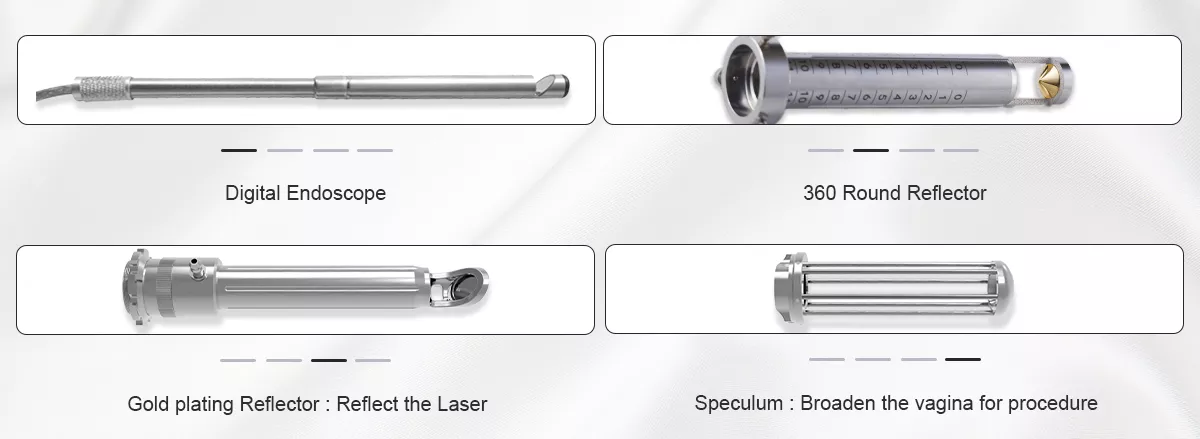

As you see, there are 3 treatment heads. Each one have the
different function:
Scanner Head, mainly for the acne removal, stretch marks removal,
scars removal treatments
Vaginal head, mainly for the vaginal tightening,Cervical erosion
and other Gynecological diseases.
Cutting head, which can be used for the warts removal, sarcoma
resection and some other surgery treatment.
Advantage
1. Use the Metal Rf tube with 10600nm diode laser, which is less
traumatic for the skin
2. 8 laser shapes for diffrent treatment area.
3. This machine can do a professional gynecology treatment
4. Air blow & Air flow button make treatment more cleaning.
Specification
Laser Type | 10.6μm |
Output Power | 30W |
Focal length of working head | F=50mm 75mm 100mm |
Indication Beam | Red Diode Laser(650nm, ≤5mW) |

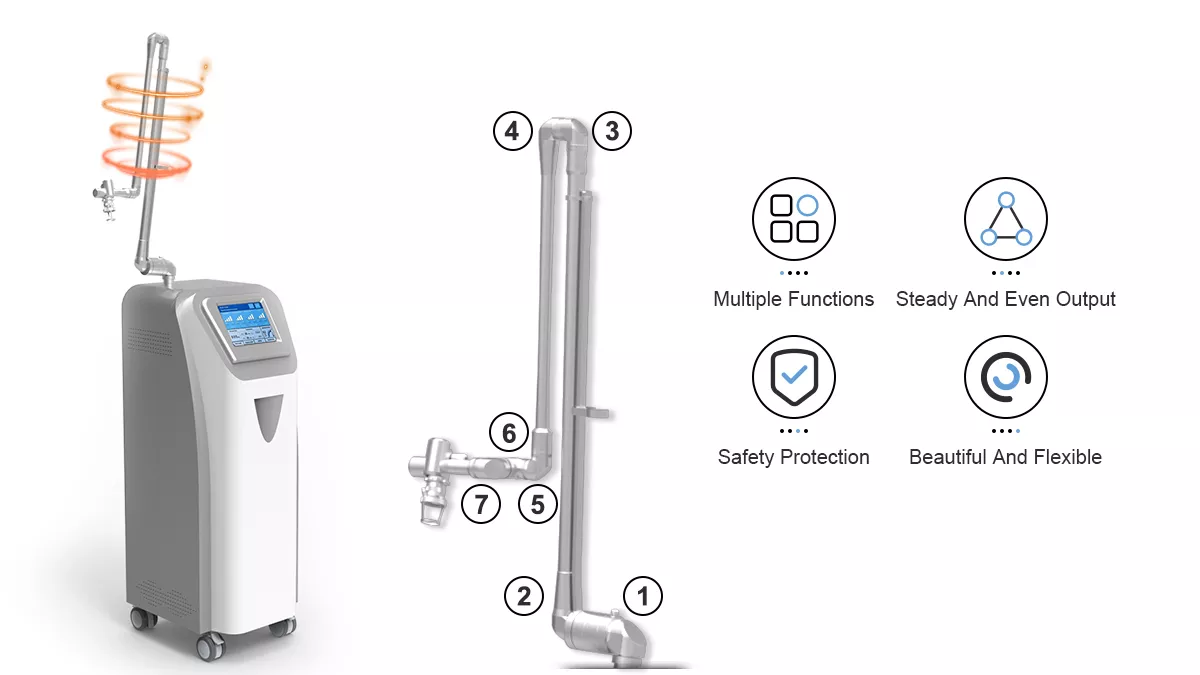

Transmission System | 7-Articulation Joint Spring Arm |
Smoke Exhausting System | Built-in air blow |
Cooling System | Air cooling |
Environmental temperature | 5°C~40°C |
Relative Humidity | ≤80% |
Power Supply | ~220V±22V,50Hz±1Hz |
